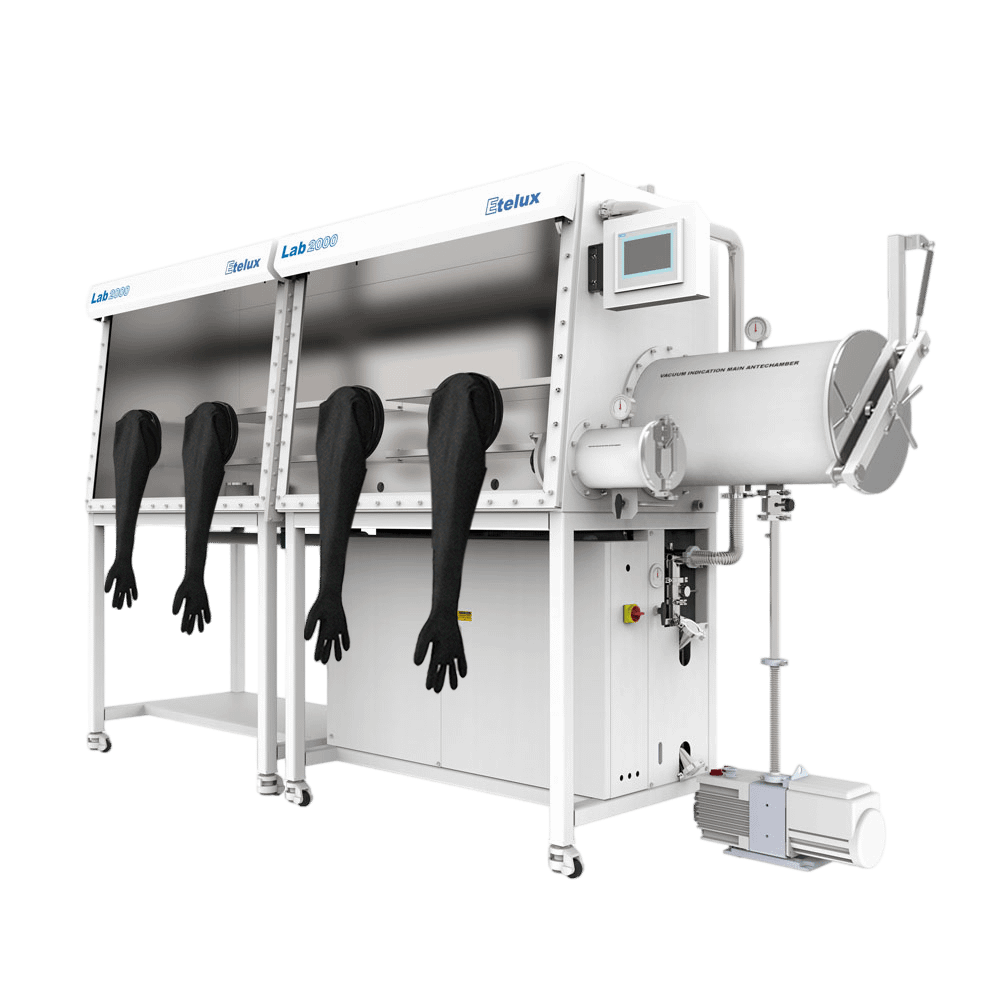

Lab2000 Series 2400 Integrated Single-sided Glove Box
Lab2000 Series 2400 Integrated Single-sided Glove Box - Image 2
Lab2000 Series 2400 Integrated Single-sided Glove Box - Image 3
Lab2000 Series 1500 Integrated Single-sided Glove Box Lab2000 Series 1500 Integrated Single-sided Glove Box

Lab2000 Series 2400 Integrated Single-sided Glove Box

  • Stainless steel enclosure design, tempered glass or polycarbonate front window(optional)
  • Specifications: Water, Oxygen ≤1ppm; Leakage rate: ≤0.05vol%/h
  • Modular design of solenoid valves reduces leakage and facilitates replacement
  • Large transition chamber with sliding tray, uniquely designed transition chamber door that is lightweight and easy to open
  • GP-20 inert gas purification system; SIEMENS microcontroller
  • SIEMENS touch screen for easy access to functions
  • Data memo: Automatically records system data
  • Closed-loop gas circulation, oil-free and vacuum
  • Foot pedal pressure control instead of manual adjustment
  • All stainless steel gas flow piping and fittings; EDWARDS RV12 vacuum pump
  • HEPA high-efficiency filter
  • Automatic pressure control, working pressure settable within ±12mbar range
  • Height-adjustable stand
  • Adjustable casters for easy movement; Lampshade with anti-reflective coating



Guaranteed Safe Checkout

Lab2000 Series 2400 Integrated Single-sided Glove Box
Lab2000 Series 2400 Integrated Single-sided Glove Box

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Technical Parameters
Glove Box
 Describe Material: Stainless steel 1.4301(SUS type 304), thickness 3mm.Dimensions: 2400mm (L) x 750mm (W) x 900mm (H)
 Volume 0.8 m³
 Front WindowPanel: 8 mm thick tempered safety glass or 10 mm thick polycarbonate (optional) Dimensions: 1123 mm (L) x 839 mm (H)
 Glove Caliber Made of hard aluminum alloy or polyoxymethylene (optional), 220 mm diameter, O-ring seal
 Gloves Material: Butyl rubber Thickness: 0.4 mm or 0.8 mm (optional)
 Filter Inlet and outlet filters, filtering <0.3μm
 Illumination LED lighting is located at the top of the front windshield
 Leakage Rate Final acceptance testing will be conducted according to the standard of leakage rate < 0.05 vol%/h
GP20 Gas Purification System
 DescribeAutomatic removal of H2O and O2; single purification column system with automatic regeneration (optional GP200 dual purification column); closed gas circulation pipeline
 Use Voltage AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)
 working GasWorking gas: N2, Ar, He (purity ≥ 99.999%); Regeneration gas: H2 accounts for 5%-10%, the remainder is working gas (purity ≥ 99.999%)
Vacuum PumpSpecifications: Rotary vane vacuum pump, equipped with oil mist filter and gas ballast control; Flow rate: 12 m³/h (7 cfm), vacuum level < 2 x 10 -3 mbar (dry pump optional)
 Loop Unit Oil-free high-speed fan; air volume: 0 – 100 m³/h
 Valve Electromagnetic high vacuum valve
 Leakage Rate Final acceptance testing will be conducted according to the standard of leakage rate < 0.05 vol%/h
Cleaning System
 Describe Once the appropriate time and pressure are set, the system can automatically replace the gas in the chamber.
Analyzer
   Volume Size205 mm（L） x 80 mm（W） x 60 mm（H）
 Measurement Range 0-1000 ppm
 Other Oxygen Analyzers GE oxy.IQ™ Oxygen Transmitter
   Gloves Size205 mm（L） x 80 mm（W） x 60 mm（H）
 Measurement Range 0-500 ppm
 Other Oxygen Analyzers GE VeriDri™ Dew-Point Transmitter
Solvent Purification System
  Leakage Rate Material: 1.4301 stainless steel (SUS type 304), 3 mm thick; Internal dimensions: 220 mm (Φ) x 450 mm (H); High-quality activated carbon;
Optional Equipment
  Refrigerator Independent control system integrated into the side panel of the cabinet; temperature range 35℃; 18L or 32L capacity available; main body made of 304 stainless steel; 5 layer variable partition; R404 environmentally friendly refrigerant, original import;
Heated ChamberThe large transition chamber is equipped with a heating system with a temperature of 200℃ and a temperature control range of ±1℃.
Other Notes
Product Certification ISO9001 certification, CE certification, UL certification
Warranty Period One-year warranty, lifetime repair
Precautions For details, please refer to the danger, warning, and precaution clauses in the instruction manual
  • The glove box features an attractive design, compact structure, and fine workmanship
  • The inert gas inside the glove box is circulated in a closed loop by a circulating fan and purifier, continuously absorbing oxygen and water
  • The deoxygenation material is regenerable, and the regeneration process is automatically controlled by a program
  • It adopts the latest European technology, and all key components are imported from Europe from world-renowned manufacturers
  • The control system includes self-diagnosis, power-off self-starting, pressure control and adaptive functions, password protection, and the control unit uses a Siemens PLC touch screen
  • The water analyzer is highly corrosion-resistant and has a wide range of applications, especially for users in lithium battery manufacturing and metal-organic industries. It can be cleaned three times free of charge and reused, avoiding the problem of being scrapped after a single contamination
  • The oxygen analyzer uses a zirconia sensor, avoiding the problem of short fuel cell lifespan and continuous exposure to air
  • An integrated valve structure is adopted, reducing and optimizing… The optimized system piping layout reduces potential leaks, simplifies leak detection, and ensures greater product stability and reliability
  • The equipment operates stably and can run continuously 24/7
  • Automatic control simplifies operation and reduces maintenance costs
  • Specialized, standardized, and large-scale production of all glove box components
  • Products are available to meet various special requirements
