- The glove box has a beautiful design, compact structure, and fine workmanship
- The inert gas inside the glove box is circulated in a closed manner through a circulating fan and purifier, continuously absorbing oxygen and water
- The material for removing water and oxygen can be regenerated, and the regeneration process is automatically controlled by a program
- Adopting the latest European technology, all key components are imported from Europe and sourced from world-renowned manufacturers
- The control system includes self diagnosis, power-off self starting characteristics, pressure control and adaptive functions, password protection, and the control unit adopts Siemens PLC touch screen
- The water analyzer has strong corrosion resistance and a wide range of applications, especially for users in lithium battery manufacturing and metal organic industries. It can be cleaned three times free of charge and reused, avoiding the problem of being scrapped after one pollution
- The oxygen analyzer uses ZrO2sensors to avoid the problem of short lifespan and continuous exposure to air in fuel cells
- Adopting an integrated valve structure reduces and optimizes the system pipeline layout, reduces leakage points, simplifies the leak detection process, and makes the product more stable and reliable to use
- The equipment runs stably and can operate continuously for 7 × 24 hours for a long time
- Automatic control, simple operation, low operation and maintenance costs
- Specialized, standardized, and large-scale production of various parts of the glove box
- Provide products for customers with various special requirements
- All components have undergone strict review and control
- Rich experience in design and control
- The production process strictly follows the ISO9001 standard
Lab2000 Series 1800 Split Double-Sided Glove Box
Lab2000 Series 1800 Single-Sided Integrated Glovebox

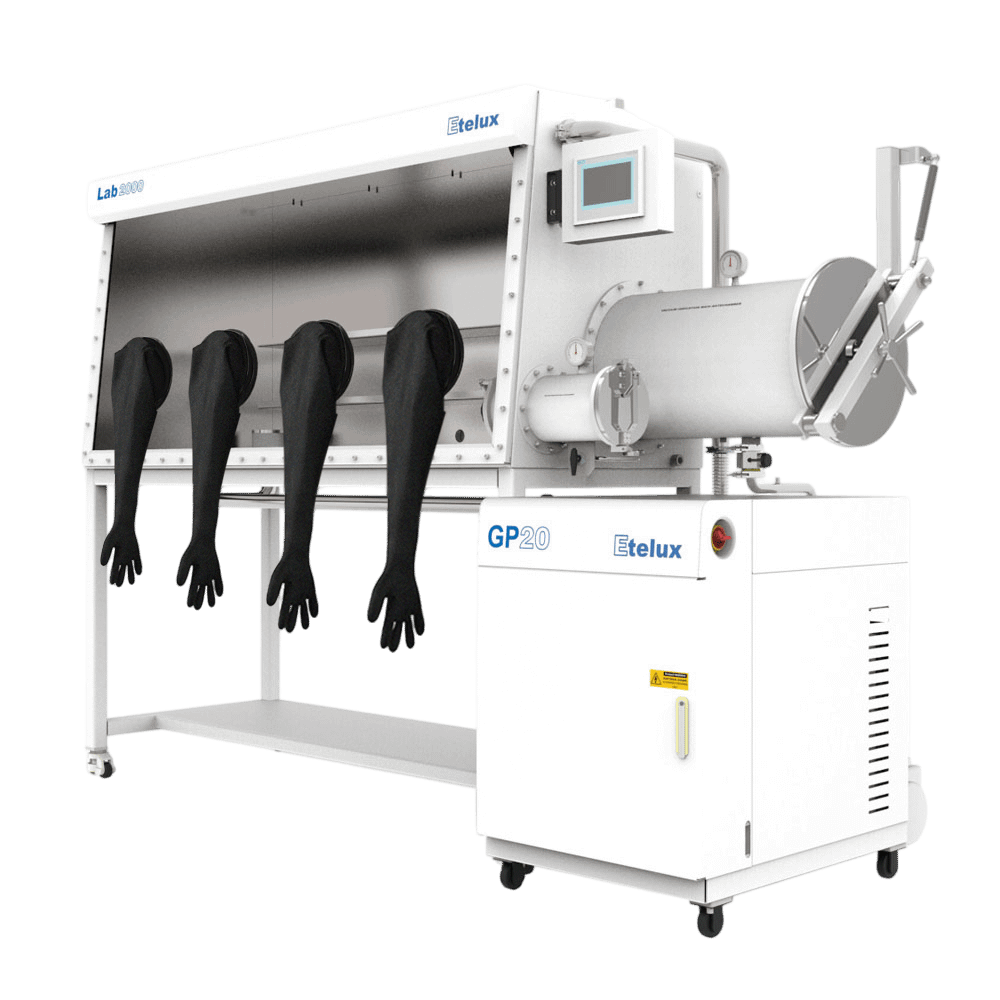

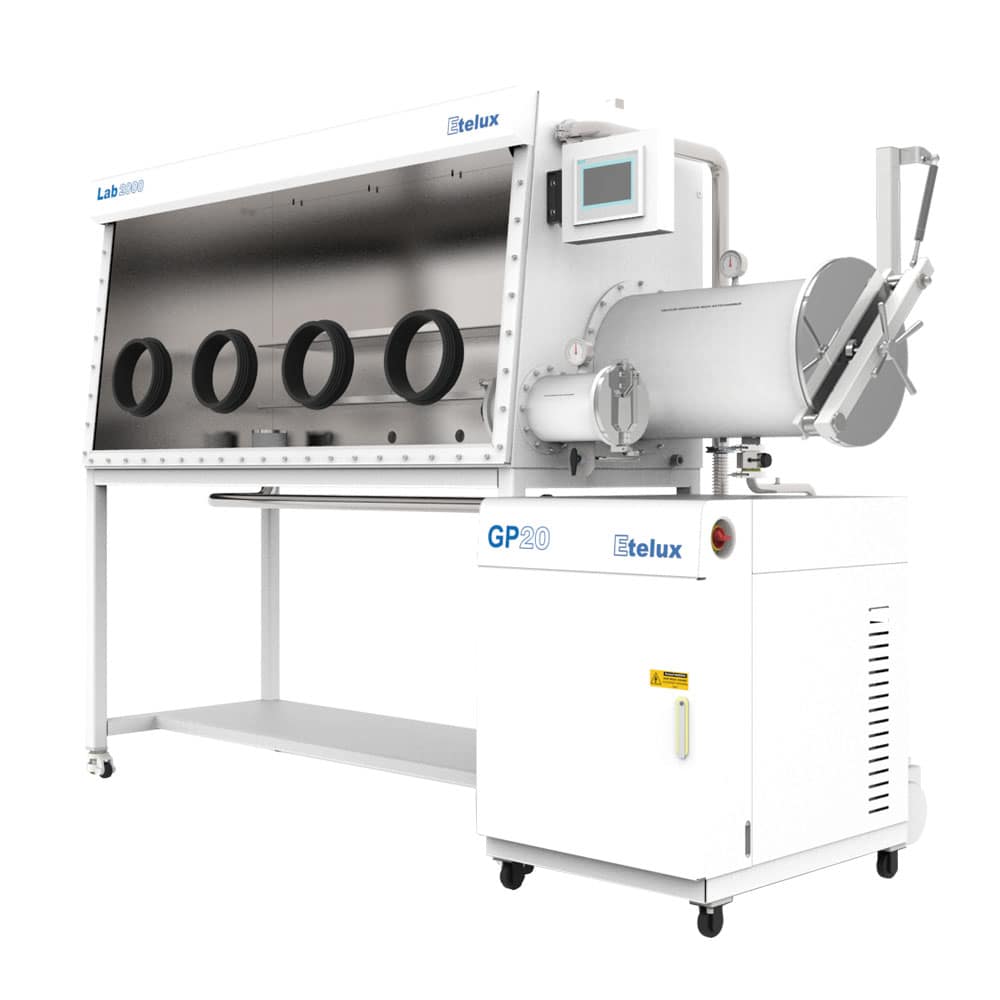

Lab2000 Series 1800 Split Single-Sided Glove Box
- Stainless steel box design, tempered glass or polycarbonate front window (optional)
- Indicator: Water and oxygen ≤ 1ppm
- Leakage rate: ≤ 0.05vol%/h
- The solenoid valve adopts modular design, which reduces leakage rate and is easy to replace
- Large transition cabin with sliding tray, unique design of transition cabin door, lightweight and easy to open; GP-20 inert gas purification system
- SIEMENS microcontroller
- SIEMENS operation touch screen, easy to access various functions
- Data memo: Automatically record system data
- Closed gas circulation, oil-free and vacuum free
- Use foot pedals instead of manual pressure control
- All stainless steel gas flow pipes and fittings
- EDWARDS RV12 vacuum pump
- HEPA high-efficiency filter
- Automatic pressure control, the working pressure can be set within a range of ± 12mbar
- Adjustable height bracket
- Adjustable casters for easy mobility
- Lampshade with anti reflective film
| Technical Parameters | |
| Cabinet | |
| Descriptive | Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm Dimensions: 1800mm(L) x 750mm(W) x 900mm(H) |
| Volumetric | 0.8 m³ |
| Front window | Panel: 8 mm thick safety tempered glass or 10 mm thick polycarbonate (optional) Size: 1735mm(L) x 839mm(H) |
| Glove compartment | Hard Aluminum or Paraformaldehyde (optional) 220 mm, O-Ring Seal |
| Glove | Material: Buttyl rubber Thickness: 0.4 mm or 0.8 mm (optional) |
| Filter | Outlet and inlet filters, filtration <0.3μm |
| illumination | LED lighting at the top of the front window |
| Leak rate | Final acceptance test according to leakage rate < 0.05 vol%/h |
| GP20 Gas Purification System | |
| Descriptive | Automatic removal of H2O and O2; single purge column system with automatic regeneration (optional GP200 dual purge column); closed gas circulation line |
| Operating Voltage | AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional) |
| Working gas | Working gas: N2, Ar, He (purity ≥ 99.999%); regeneration gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%) |
| Vacuum pumps | Specifications: rotary vane vacuum pump, with oil mist filter, with gas ballast control; flow rate: 12 m³/h (7 cfm), vacuum < 2 x 10-3 mbar (dry pump optional) |
| Recurrent unit | Oil-free high speed fan; airflow:0 – 100 m³/h |
| Valves | Solenoid high vacuum valve |
| Leak rate | Final acceptance test according to leakage rate < 0.05 vol%/h |
| Cleaning system | |
| Descriptive | Set the appropriate time and pressure, the system can automatically gas replacement of the box。 |
| Analyzer | |||
| Volumetric | Size | 205 mm（L） x 80 mm（W） x 60 mm（H） | |
| Measurement range | 0-1000 ppm | ||
| Other Oxygen Analyzers | GE oxy.IQ™ Oxygen Transmitter | ||
| Glove | Size | 205 mm（L） x 80 mm（W） x 60 mm（H） | |
| Measurement range | 0-500 ppm | ||
| Other Oxygen Analyzers | GE VeriDri™ Dew-Point Transmitter | ||
| Solvent purification system | |||
| Leak rate | Material: stainless steel 1.4301 (SUS type 304), thickness 3 mm ; Internal dimensions. 220mm(Φ) x 450mm(H) ;High quality activated carbon; | ||
| Optional equipment | |||
| Freezer cabinet | Independent control system, integrated in the side panel of the box, temperature -35℃, volume 18L or 32L optional; Main body 304 stainless steel plate, 5 variable compartments; R404 environmentally friendly refrigerant, original imported | ||
| Heated cabin | The large transition chamber is equipped with a heating system with a temperature of 200°C and a temperature control of ±1°C. | ||
| Other notes | |||
| Product Certification | ISO9001 certification, CE certification, UL certification | ||
| warranty period | One year warranty, lifetime maintenance | ||
| Application Notes | For details, refer to the Danger, Warning, Caution, etc. section of the manual | ||
